Deploying Versioned Migrations to Kubernetes from Atlas Schema Registry

This guide will walk you through deploying versioned migrations to Kubernetes from Atlas Schema Registry.

Use this setup if:

  • You are using the Atlas Kubernetes Operator with the versioned migrations flow (e.g using AtlasMigration CRDs).
  • You have a CI/CD pipelines pushing your migration directory to the Atlas Schema Registry.

Prerequisites

  • An Atlas Cloud account with a project on the Atlas Schema Registry
  • An Atlas Cloud Bot Token (see Creating a Bot Token
  • A Kubernetes cluster
  • Helm and Kubectl installed

Steps

  1. Create a Kubernetes Secret with your Atlas Cloud Bot Token

    kubectl create secret generic atlas-registry-secret --from-literal=token=<your token>
  2. Create a Kubernetes Secret with your database credentials.

    kubectl create secret generic db-credentials --from-literal=url="mysql://root:pass@localhost:3306/myapp"

    Replace the url value with your database credentials.

  3. Install the Atlas Operator

    helm install atlas-operator oci://ghcr.io/ariga/charts/atlas-operator

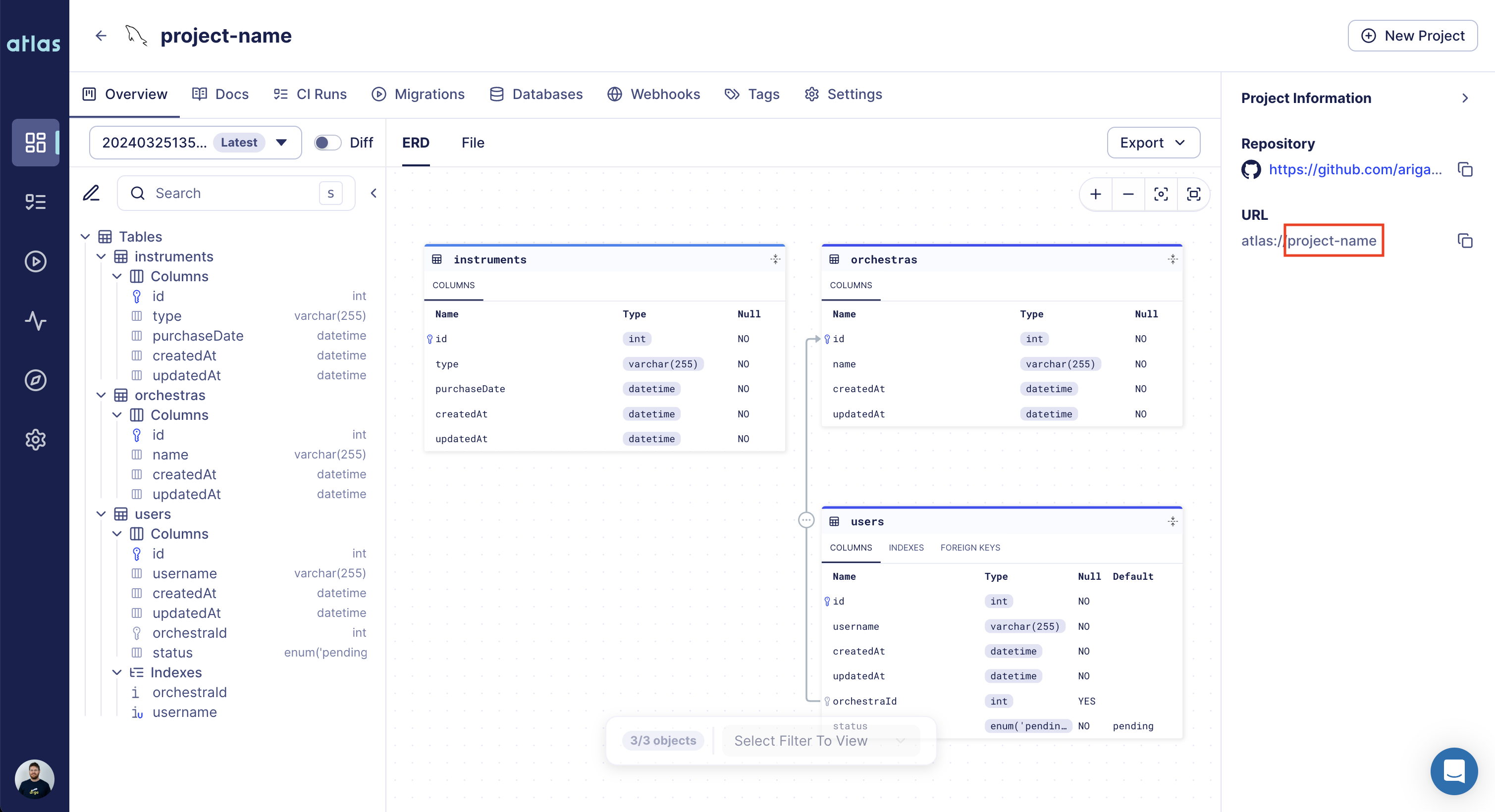

  4. Locate your Cloud project name in the Atlas Schema Registry

    Atlas Schema Registry

    Open the Project Information pane on the right and locate the project slug (e.g project-name) in the URL.

  5. Create an file named migration.yaml with the following content:

    migration.yaml
    apiVersion: db.atlasgo.io/v1alpha1
    kind: AtlasMigration
    metadata:
    name: atlasmigration
    spec:
    urlFrom:
    secretKeyRef:
    key: url
    name: db-credentials
    cloud:
    tokenFrom:
    secretKeyRef:
    key: token
    name: atlas-registry-secret
    dir:
    remote:
    name: "project-name" # Migration directory name in your atlas cloud project
    tag: "latest"

    Replace project-name with the name of your migration directory in the Atlas Schema Registry.

    If you would like to deploy a specific version of the migrations, replace latest with the version tag.

  6. Apply the AtlasMigration CRD manifest

    kubectl apply -f migration.yaml
  7. Check the status of the AtlasMigration CRD:

    kubectl get atlasmigration

    kubectl will output the status of the migration:

    NAME             READY   REASON
    atlasmigration True Applied

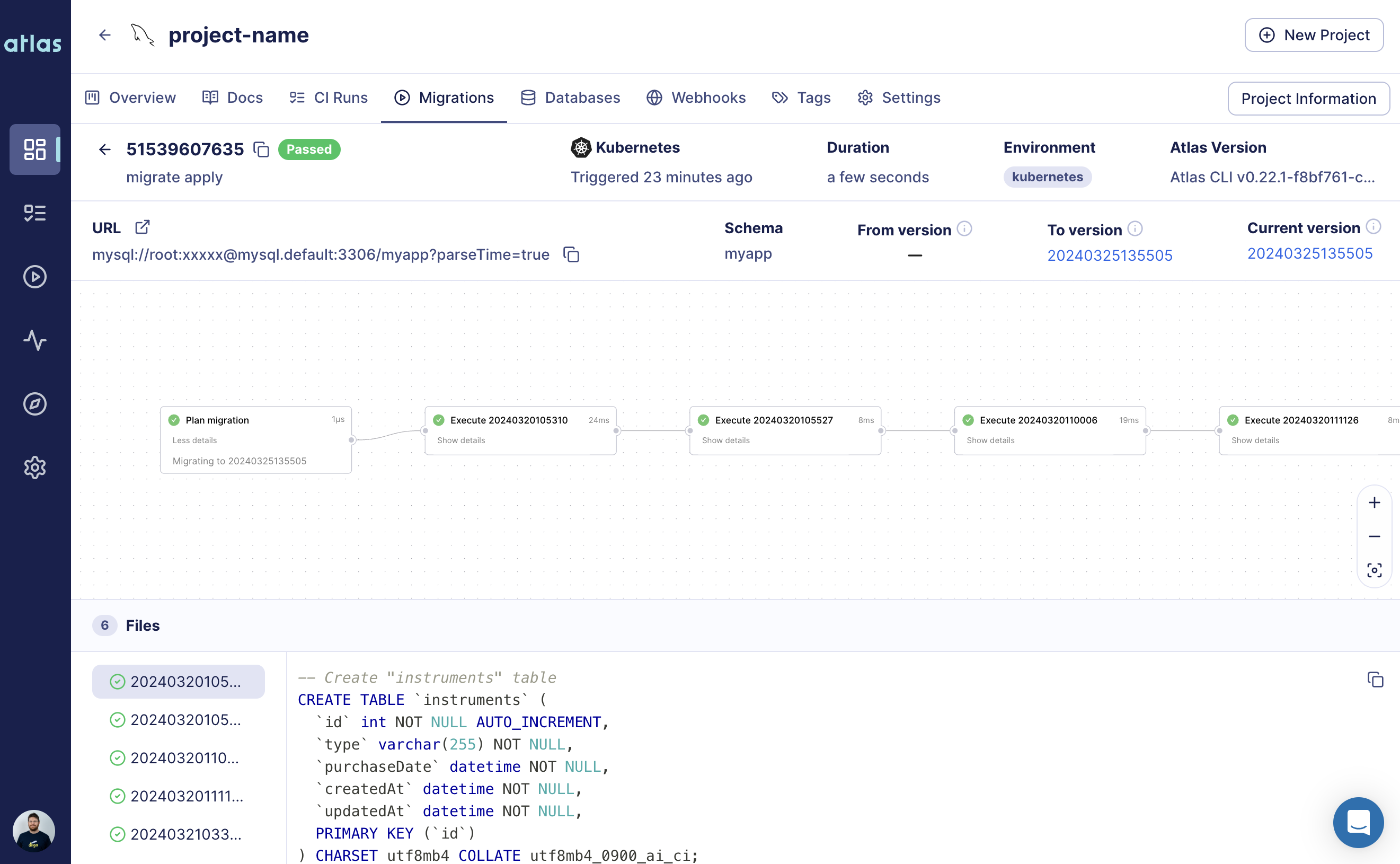

  8. Observe the reported migration logs on your Cloud project in the Atlas Schema Registry:

    Atlas Schema Registry
